4 inch printers - Axicon Labels

EZ Series

4 inch printers

All metal mechanism design featuring die-cast center plane and base make the GoDEX EZ2250i 4 inch printers perfect for high volume applications.

Color TFT LCD and operation panel for easy and intuitive operation
USB Host for extension memory and standalone operation
All metal, industrial enclosure and print mechanism
Automatic self adjustment for coated inside/outside ribbons

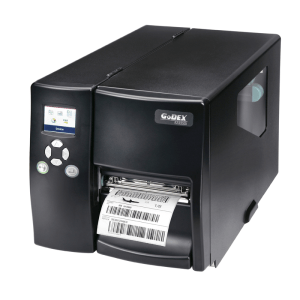

EZ2250i 203 DPI model
EZ2350i 300 DPI model

EZ2250i Specifications
EZ2350i Specifications
Downloads

GoDEX EZ2250i Specifications

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi (8 dots/mm)
Print Speed	7IPS (177 mm/s)
Print Width	4.09" (104mm)
Print Length	Min. 0.16” (4 mm); Max. 100” (2540 mm)
Processor	32 Bit RISC CPU
Memory	8MB Flash (4MB for user storage) / 16MB SDRAM
Sensor Type	Adjustable reflective sensor and transmissive sensor, left aligned
Media	Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max. Thickness: 0.003” (0.06 mm) Min. - 0.01” (0.25 mm) Max. Label roll diameter: Max. 8” (203.2 mm) , Max. 6” (152.4 mm) Core diameter: 3”, 1.5” (76,2 mm, 38,1 mm)
Ribbon	Types: Wax, wax/resin, resin Length: 1471’ (450 m) Width: 1.18” Min - 4.33” (30 mm - 110 mm) Max Ribbon roll diameter.: 2.99“ (76 mm) Core diameter: 1” (25.4 mm)
Printer Language	EZPL , GEPL, GZPL auto switch
Software	Label design software: GoLabel (for EZPL only) Driver & DLL: Windows 2000, XP, Vista, 7,8, Windows Server 2003 & 2008
Resident Fonts	Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatabl
Download Fonts	Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable
Barcodes	1-D Bar codes: Code 39, Code 93, Code 128 (subset A, B, C), UCC/EAN-128 K-Mart, UCC/EAN-128, UPC A / E (add on 2 & 5), I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14, HIBC, MSI (1 Mod 10), Random Weight, Telepen, FIM, China Postal Code, RPS 128 and GS1 DataBar 2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code, Aztec code
Code Pages	CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255,1257 Unicode UTF8、UTF16BE、UTF16LE
Graphics	Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Interfaces	Serial port: RS-232 (DB-9) USB 2.0 Ethernet 10/100 Mbps USB Host
Control Panel	Color TFT LCD with navigation button Power on/off button Calibration button
Power	Auto Switching 100-240VAC, 50-60Hz
Real Time Clock	Standard
Environment	Operation temperature: 41°F to 104°F (5°C to 40°C) Storage temperature: -4°F to 122°F (-20°C to 50°C)
Humidity	Operation: 30-85%, non-condensing. Storage: 10-90%, non-condensing.
Agency Approvals	CE(EMC), FCC Class A, CB, cUL, CCC
Dimension	Length: 20.15” (512 mm) Height: 11.45” (291 mm) Width: 10.78” (274 mm)
Weight	33 lbs (15Kg) ,excluding consumables
Options	Cutter Module Label Dispenser + Internal Rewinder Parallel port adopter module (Centronic female 36-pin) Applicator Interface (1 input, 3 outputs, power 500mA @ 5V, for project base) External label roll holder for 10” (250 mm) O.D. label rolls External label rewinder
Note	* Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners. ** Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height and maximum print speed capability.

GoDEX EZ2350i Specifications

Print Method	Thermal Transfer / Direct Thermal
Resolution	300 dpi (8 dots/mm)
Print Speed	5IPS (177 mm/s)
Print Width	4.09" (104mm)
Print Length	Min. 0.16” (4 mm); Max. 45” (1143 mm)
Processor	32 Bit RISC CPU
Memory	8MB Flash (4MB for user storage) / 16MB SDRAM
Sensor Type	Adjustable reflective sensor and transmissive sensor, left aligned
Media	Types: Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width: 1” (25.4 mm) Min. - 4.64” (118 mm) Max. Thickness: 0.003” (0.06 mm) Min. - 0.01” (0.25 mm) Max. Label roll diameter: Max. 8” (203.2 mm) , Max. 6” (152.4 mm) Core diameter: 3”, 1.5” (76,2 mm, 38,1 mm)
Ribbon	Types: Wax, wax/resin, resin Length: 1471’ (450 m) Width: 1.18” Min - 4.33” (30 mm - 110 mm) Max Ribbon roll diameter.: 2.99“ (76 mm) Core diameter: 1” (25.4 mm)
Printer Language	EZPL , GEPL, GZPL auto switch
Software	Label design software: GoLabel (for EZPL only) Driver & DLL: Windows 2000, XP, Vista, 7,8, Windows Server 2003 & 2008
Resident Fonts	Bitmap fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatabl
Download Fonts	Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian fonts 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions Scalable fonts 90°, 180°, 270° rotatable
Barcodes	1-D Bar codes: Code 39, Code 93, Code 128 (subset A, B, C), UCC/EAN-128 K-Mart, UCC/EAN-128, UPC A / E (add on 2 & 5), I 2 of 5, I 2 of 5 with Shipping Bearer Bars, EAN 8 / 13 (add on 2 & 5), Codabar, Post NET, EAN 128, DUN 14, HIBC, MSI (1 Mod 10), Random Weight, Telepen, FIM, China Postal Code, RPS 128 and GS1 DataBar 2-D Bar codes: PDF417, Datamatrix code, MaxiCode, QR code, Micro PDF417, Micro QR code, Aztec code
Code Pages	CODEPAGE 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 WINDOWS 1250, 1251, 1252, 1253, 1254, 1255,1257 Unicode UTF8、UTF16BE、UTF16LE
Graphics	Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Interfaces	Serial port: RS-232 (DB-9) USB 2.0 Ethernet 10/100 Mbps USB Host
Control Panel	Color TFT LCD with navigation button Power on/off button Calibration button
Power	Auto Switching 100-240VAC, 50-60Hz
Real Time Clock	Standard
Environment	Operation temperature: 41°F to 104°F (5°C to 40°C) Storage temperature: -4°F to 122°F (-20°C to 50°C)
Humidity	Operation: 30-85%, non-condensing. Storage: 10-90%, non-condensing.
Agency Approvals	CE(EMC), FCC Class A, CB, cUL, CCC
Dimension	Length: 20.15” (512 mm) Height: 11.45” (291 mm) Width: 10.78” (274 mm)
Weight	33 lbs (15Kg) ,excluding consumables
Options	Cutter Module Label Dispenser + Internal Rewinder Parallel port adopter module (Centronic female 36-pin) Applicator Interface (1 input, 3 outputs, power 500mA @ 5V, for project base) External label roll holder for 10” (250 mm) O.D. label rolls External label rewinder
Note	* Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners. ** Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height and maximum print speed capability.

Brochure_GoDEX_EZ2250i_EZ2350i_EN

ZX400 Series

4 inch printers

Large intuitive touch screen LCD allows the user to be in control.
Three USB host ports standard allows integration with several devices.
High performance printer designed for high volume applications in mind

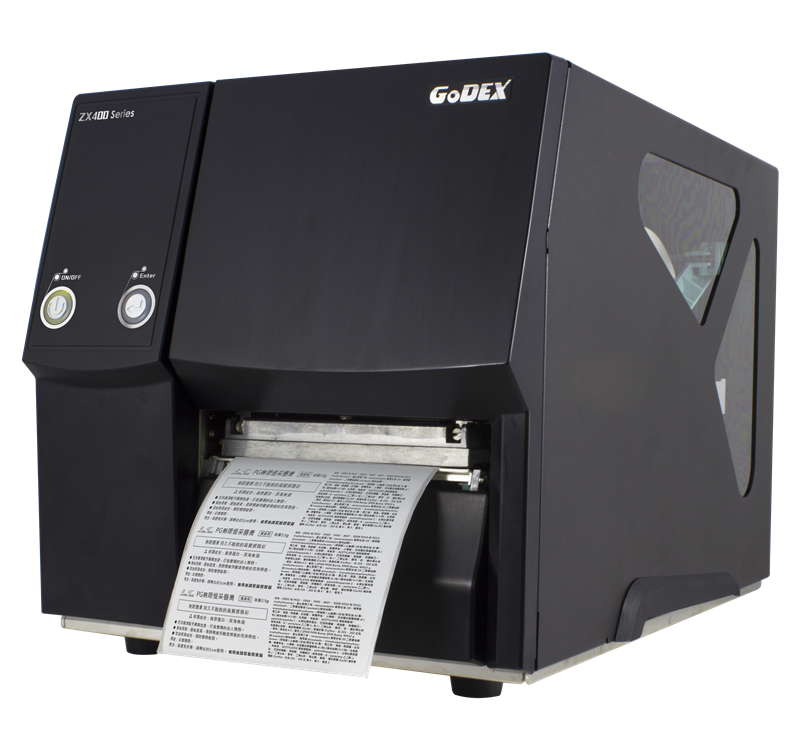

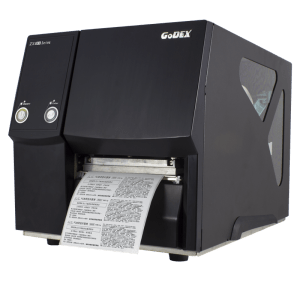

ZX420 – 203 dpi (8 dots/mm) & 300 dpi (12 dots/mm) resolutions; print speed is up to 6″/150 mm per second.
ZX430 – 300 dpi (8 dots/mm) & 300 dpi (12 dots/mm) resolutions; print speed is up to 6″/150 mm per second.
Up to 4 ips print speed
New hardware ideal for both high volume or precision printing applications
Easy and fast ribbon/media loading.

USB2.0, USB host, Serial & parallel port, Ethernet, optional WIFI & Bluetooth module for multiple applications.
32 MB SDRAM and 128 MB Flash memory – including 60 MB available for user.
Wide range media type supporting

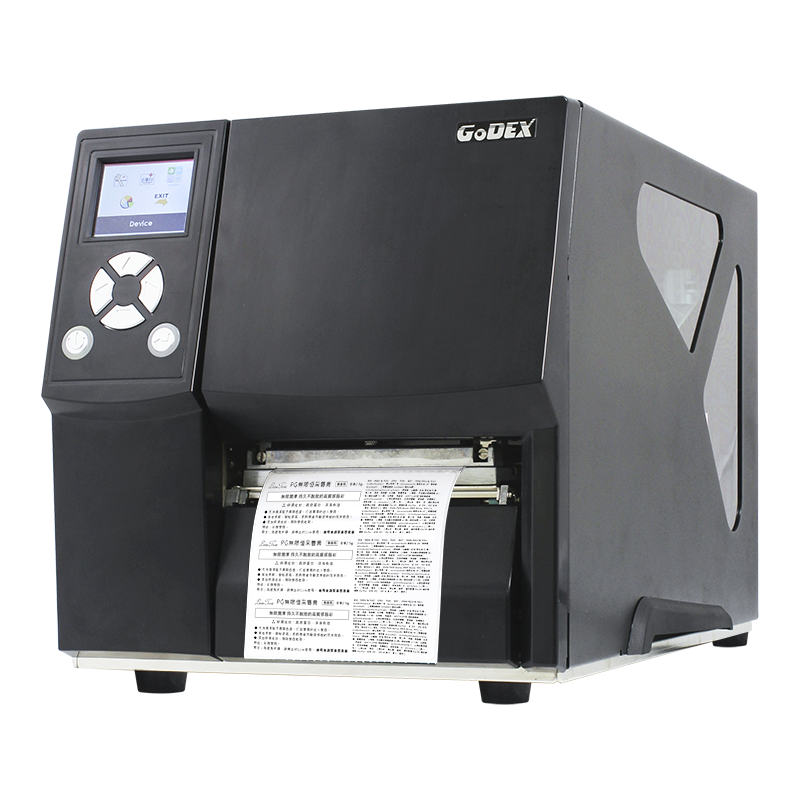

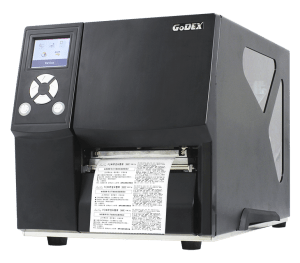

ZX420i – 203 dpi (8 dots/mm) resolutions; print speed is up to 6″/150 mm per second.
ZX430i – 300 dpi (8 dots/mm) resolutions; print speed is up to 6″/150 mm per second.
Supports 450 meter ribbon and 8 inch diameter label (3″core) available for bulk printing.
Free GoLabel label design software.

ZX420/430 Specifications
ZX420i/430i Specifications
Downloads

GoDEX ZX420/430 Specifications

Print Method	Thermal Transfer / Direct Thermal
Resolution	420: 203 dpi (8 dots/mm) 430: 300 dpi (12 dot/mm)
Print Speed	420: 6 ips (152 mm/s) 430: 4 ips (102 mm/s)
Print Width	420: 4.25” (108mm) 430: 4.16” (105.7mm)
Print Length	Min. 0.16” (4 mm)** ; Max . 157.44” ( 3999mm)
Processor	32-bit RISC CPU
Memory	Flash 128 MB Flash (60 MB for user storage) SDRAM 32 MB
Sensor Type	Adjustable reflective sensor and transmissive sensor, left aligned
Media	Type Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width Tear : Min. 1” (25.4 mm) – Max. 4.64” (118 mm) Cutter : Max. 4.61” (117 mm) Dispenser / Rewind : Max. 4.64” (118 mm) Thickness Min. 0.003” (0.076 mm) – Max. 0.01” (0.25 mm) Label roll diameter Max. 8” (203.2 mm) with 3" (76.2 mm) core Max. 6” (152.4 mm) with 1.5" (38.1 mm) core Max. 5" (127 mm) with 1" (25.4 mm) core Core diameter Min. 1 " (25.4 mm) – Max. 3" (76.2 mm)
Ribbon	Types Wax, wax/resin, resin Length Max. 1476’ (450 m) Width Min. 1.18” (30 mm) – Max. 4.33” (110 mm) Ribbon roll diameter 3” (76.2 mm) Core diameter 1” (25.4 mm)
Printer Language	EZPL, GEPL, GZPL auto switch
Software	Label design software GoLabel (for EZPL only) Driver Windows 2000, XP, Vista, Windows 7, 8.1 and 10 , Windows Server 2003 & 2008、 MAC、 Linux DLL Win CE, .NET, Andriod, Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Windows 10
Resident Fonts	Bitmap Fronts : 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable
Download Fonts	Bitmap Fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian Fonts 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001) 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions TTF Fonts TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable
Barcodes	1-D Bar Codes China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, ISBT – 128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Random Weight, Standard 2 of 5, Telepen, UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, UCC 128, UCC/EAN-128 K-Mart 2-D Bar Codes Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39
Code Pages	Codepage 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode UTF8、UTF16BE、UTF16LE
Graphics	Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Interfaces	USB 2.0 (B-Type)
Control Panel	• 1 Power on/standby button with green color LED backlight • 1 Calibration button at rear panel • 1 Control key : FEED / PAUSE / CANCEL with dual color LED backlight: Ready (Green); Error (Red)
Power	Auto Switching 100-240V AC, 50-60Hz
Real Time Clock	Standard
Environment	Operation temperature 41°F to 104°F (5°C to 40°C) Storage temperature -4°F to 140°F (-20°C to 60°C)
Humidity	Operation: 20-85%, non-condensing. Storage: 10-90%, non-condensing.
Agency Approvals	CE (EMC)、FCC Class B、CB、UL、cUL、CCC
Dimension	Length 15.86” (403 mm) Height 10.79” (274 mm) Width 10.24” (260 mm)
Weight	23.81lbs (10.8 Kg), excluding consumables
Options	Cutter (Dealer Install) Parallel port adaptor module (Centronic female 36-pin)(Dealer Install) Bluetooth (Dealer Installer) Wireless LAN (IEEE 802.11 b/g/n) (Dealer Install) External label rewinder Label Dispenser (Dealer Install)
Note

GoDEX ZX420i/430i Specifications

Print Method	Thermal Transfer / Direct Thermal
Resolution	420i: 203 dpi (8 dots/mm) 430i: 300 dpi (12 dot/mm)
Print Speed	420: 6 ips (152 mm/s) 430: 4 ips (102 mm/s)
Print Width	420: 4.25” (108mm) 430: 4.16” (105.7mm)
Print Length	Min. 0.16” (4 mm)** ; Max . 157.44” ( 3999mm)
Processor	32-bit RISC CPU
Memory	Flash 128 MB Flash (60 MB for user storage) SDRAM 32 MB
Sensor Type	Adjustable reflective sensor and transmissive sensor, left aligned
Media	Type Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width Tear : Min. 1” (25.4 mm) – Max. 4.64” (118 mm) Cutter : Max. 4.61” (117 mm) Dispenser / Rewind : Max. 4.64” (118 mm) Thickness Min. 0.003” (0.076 mm) – Max. 0.01” (0.25 mm) Label roll diameter Max. 8” (203.2 mm) with 3" (76.2 mm) core Max. 6” (152.4 mm) with 1.5" (38.1 mm) core Max. 5" (127 mm) with 1" (25.4 mm) core Core diameter Min. 1 " (25.4 mm) – Max. 3" (76.2 mm)
Ribbon	Types Wax, wax/resin, resin Length Max. 1476’ (450 m) Width Min. 1.18” (30 mm) – Max. 4.33” (110 mm) Ribbon roll diameter 3” (76.2 mm) Core diameter 1” (25.4 mm)
Printer Language	EZPL, GEPL, GZPL auto switch
Software	Label design software GoLabel (for EZPL only) Driver Windows 2000, XP, Vista, Windows 7, 8.1 and 10 , Windows Server 2003 & 2008、 MAC、 Linux DLL Win CE, .NET, Andriod, Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Windows 10
Resident Fonts	Bitmap Fronts : 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A & B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable
Download Fonts	Bitmap Fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian Fonts 16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001) 90°, 180°, 270° rotatable and 8 times expandable in horizontal and vertical directions TTF Fonts TTF Fonts (Bold / Italic / Underline ). 0°,90°, 180°, 270° rotatable
Barcodes	1-D Bar Codes China Postal Code, Codabar, Code 11, Code 32,Code 39, Code 93, Code 128 (subset A, B, C), EAN-8, EAN-13, EAN 8/13 (with 2 & 5 digits extension), EAN 128, FIM, German Post Code, GS1 DataBar, HIBC, Industrial 2 of 5 , Interleaved 2-of-5 (I 2 of 5), Interleaved 2- o-f 5 with Shipping Bearer Bars, ISBT – 128, ITF 14, Japanese Postnet, Logmars, MSI, Postnet, Plessey, Planet 11 & 13 digit, RPS 128, Random Weight, Standard 2 of 5, Telepen, UPC-A, UPC-E, UPC-A and UPC-E with EAN 2 or 5 digit extension, UCC 128, UCC/EAN-128 K-Mart 2-D Bar Codes Aztec code, Code 49,Codablock F , Datamatrix code, MaxiCode, Micro PDF417, Micro QR code, PDF417,QR code, TLC 39
Code Pages	Codepage 437, 737,850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode UTF8、UTF16BE、UTF16LE
Graphics	Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Interfaces	USB 2.0 (B-Type)
Control Panel	• Color TFT LCD with navigation button • 1 Power on/standby button with green color LED backlight • 1 Calibration button at rear panel • 1 Control key : FEED / PAUSE / CANCEL with dual color LED backlight: Ready (Green); Error (Red
Power	Auto Switching 100-240V AC, 50-60Hz
Real Time Clock	Standard
Environment	Operation temperature 41°F to 104°F (5°C to 40°C) Storage temperature -4°F to 140°F (-20°C to 60°C)
Humidity	Operation: 20-85%, non-condensing. Storage: 10-90%, non-condensing.
Agency Approvals	CE (EMC)、FCC Class B、CB、UL、cUL、CCC
Dimension	Length 15.86” (403 mm) Height 10.79” (274 mm) Width 10.24” (260 mm)
Weight	23.81lbs (10.8 Kg), excluding consumables
Options	Cutter (Dealer Install) Parallel port adaptor module (Centronic female 36-pin)(Dealer Install) Bluetooth (Dealer Installer) Wireless LAN (IEEE 802.11 b/g/n) (Dealer Install) External label rewinder Label Dispenser (Dealer Install)
Note

Brochure_GoDEX_ZX400_ZX400i_EN

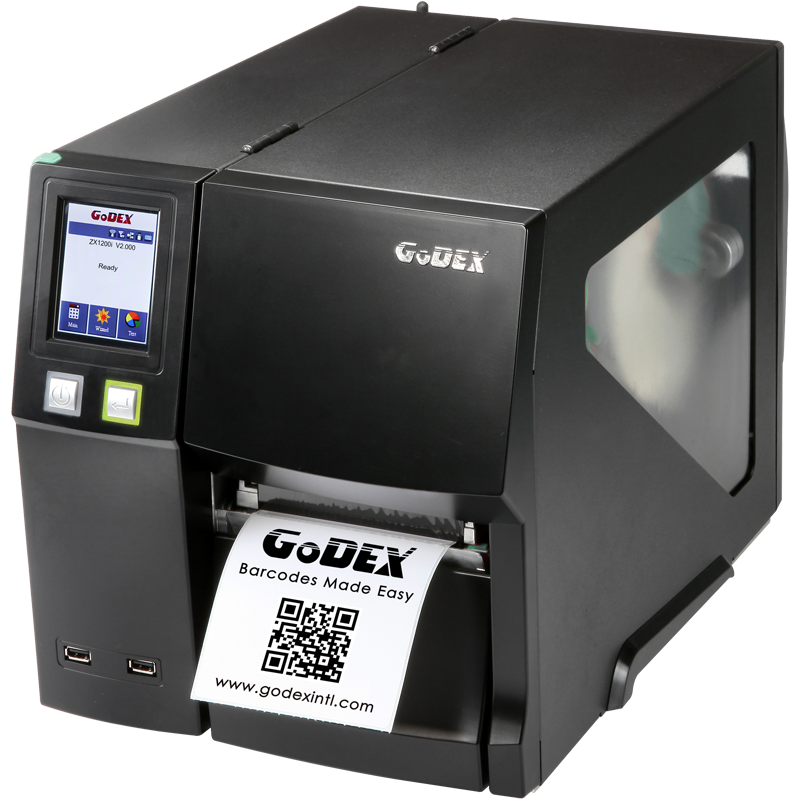

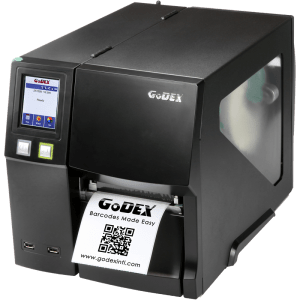

ZX1000 Series

4 inch printers

Various standard interfaces facilitate integration into several environments. Compact and robust steel design will fulfill your most demanding applications.

Large intuitive touch screen LCD allows the user to be in control.
Three USB host ports standard allows integration with several devices.
High performance printer designed for high volume applications in mind.
Up to 10 ips print speed.
Easy and fast media/ribbon loading.
New Hardware idea for both high volume or precision printing applications.
ZX1200i: 203 DPI model
ZX1300i: 300 DPI model
ZX1600i: 600 DPI model

ZX1200i Specifications
ZX1300i Specifications
ZX1600i Specifications
Downloads

GoDEX ZX1200i Specifications

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi (8 dots/mm)
Print Speed	Up to 10 IPS (254 mm/s)
Print Width	4.09” (104 mm) Up to (108mm)
Print Length	Min. 0.16” (4 mm)** – Max. 180” (4572 mm)
Processor	32 Bit RISC CPU
Memory	Flash 128 MB Flash (60 MB for user storage) SDRAM 32 MB
Sensor Type	Adjustable reflective sensor and transmissive sensor, left aligned
Media	Type:Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width : Tear : Min. 1” (25.4 mm) – Max. 4.64” (118 mm) Cutter : Max. 4.61” (117 mm) Dispenser / Rewind : Max. 4.64” (118 mm) Thickness:Min. 0.003” (0.06 mm) – Max. 0.01” (0.25 mm) Label roll diameter:Max. 8” (203.2 mm) Core diameter:Min. 1.5" (38.1 mm) – Max. 3" (76.2 mm)
Ribbon	Types:Wax, wax/resin, resin Length:Max. 1476’ (450 m) Width :Min. 1.18” (30 mm) – Max. 4.33” (110 mm) Ribbon roll diameter:3” (76.2 mm) Core diameter:1” (25.4 mm)
Printer Language	EZPL, GEPL, GZPL auto switch
Software	Label design software: GoLabel (for EZPL only) Driver:MAC , Linux Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 DLL: Win CE , .NET , Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Android / Windows 10
Resident Fonts	Bitmap Fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A&B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°,270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions TTF fonts：TTF fonts (Bold / Italic / Underline). 0°, 90°, 180°, 270° rotatable
Download Fonts	Bitmap Fonts: Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian Fonts :16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001)90∘,180∘,270∘, rotatable and 8 times expandable in horizontal and vertical directions TTF fonts :90°, 180°, 270° rotatable
Barcodes	1-D Bar codes: Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock 2-D Bar Codes: PDF417, Micro PDF417, Datamatrix code, Maxicode, QR code, Micro QR code and Aztec code
Code Pages	Codepage 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode UTF8、UTF16BE、UTF16LE
Graphics	Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Interfaces	• USB 2.0 (B-Type) • Serial port: RS-232 (DB-9) • IEEE 802.3 10/100 Base-Tx Ethernet port (RJ-45) • 3 USB Host (A-Type). 2 ports at the front panel, 1 port at the rear panel
Control Panel	• Backlight 3.2” touch screen LCD • 1 Power on/off button with green color LED backlight • 1 Control key : FEED / PAUSE / CANCEL with dual color LED backlight: Ready (Green); Error (Red) • 1 Calibration button at rear panel
Power	Switching power 100-240VAC, 50-60Hz input
Real Time Clock	Standard
Environment	Operation temperature: 41°F to 104°F (5°C to 40°C) Storage temperature: -4°F to 140°F (-20°C to 60°C)
Humidity	Operation: 20-85%, non-condensing. Storage: 10-90%, non-condensing.
Agency Approvals	CE (EMC)、FCC Class A、CB、cUL、CCC、KC
Dimension	Length: 18.30” (465 mm) Height: 12.13” (308.20 mm) Width: 10.65” (270.71 mm)
Weight	30 lbs (13.6 Kg), excluding consumables
Options	Cutter Parallel port adaptor module (Centronic female 36-pin) Bluetooth Wireless LAN (802.11 b/g/n) Applicator Interface (DSUB female 15-pin) External label roll holder for 10” (250 mm) O.D. label rolls External label rewinder Label Dispenser + Internal Rewinder (factory install) RFID R/W module (project option
Note	* Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners. ** Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height and maximum print speed capability

GoDEX ZX1300i Specifications

Print Method	Thermal Transfer / Direct Thermal
Resolution	300 dpi (12 dots/mm)
Print Speed	Up to 7 IPS (177 mm/s)
Print Width	4.09” (104 mm) Up to (105.7mm)
Print Length	Min. 0.16” (4 mm)** – Max. 180” (4572 mm)
Processor	32 Bit RISC CPU
Memory	Flash 128 MB Flash (60 MB for user storage) SDRAM 32 MB
Sensor Type	Adjustable reflective sensor and transmissive sensor, left aligned
Media	Type:Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width : Tear : Min. 1” (25.4 mm) – Max. 4.64” (118 mm) Cutter : Max. 4.61” (117 mm) Dispenser / Rewind : Max. 4.64” (118 mm) Thickness:Min. 0.003” (0.06 mm) – Max. 0.01” (0.25 mm) Label roll diameter:Max. 8” (203.2 mm) Core diameter:Min. 1.5" (38.1 mm) – Max. 3" (76.2 mm)
Ribbon	Types:Wax, wax/resin, resin Length:Max. 1476’ (450 m) Width :Min. 1.18” (30 mm) – Max. 4.33” (110 mm) Ribbon roll diameter:3” (76.2 mm) Core diameter:1” (25.4 mm)
Printer Language	EZPL, GEPL, GZPL auto switch
Software	Label design software: GoLabel (for EZPL only) Driver:MAC , Linux Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 DLL: Win CE , .NET , Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Android / Windows 10
Resident Fonts	Bitmap Fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A&B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°,270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions TTF fonts：TTF fonts (Bold / Italic / Underline). 0°, 90°, 180°, 270° rotatable
Download Fonts	Bitmap Fonts: Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian Fonts :16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001)90∘,180∘,270∘, rotatable and 8 times expandable in horizontal and vertical directions TTF fonts :90°, 180°, 270° rotatable
Barcodes	1-D Bar codes: Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock 2-D Bar Codes: PDF417, Micro PDF417, Datamatrix code, Maxicode, QR code, Micro QR code and Aztec code
Code Pages	Codepage 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode UTF8、UTF16BE、UTF16LE
Graphics	Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Interfaces	• USB 2.0 (B-Type) • Serial port: RS-232 (DB-9) • IEEE 802.3 10/100 Base-Tx Ethernet port (RJ-45) • 3 USB Host (A-Type). 2 ports at the front panel, 1 port at the rear panel
Control Panel	• Backlight 3.2” touch screen LCD • 1 Power on/off button with green color LED backlight • 1 Control key : FEED / PAUSE / CANCEL with dual color LED backlight: Ready (Green); Error (Red) • 1 Calibration button at rear panel
Power	Switching power 100-240VAC, 50-60Hz input
Real Time Clock	Standard
Environment	Operation temperature: 41°F to 104°F (5°C to 40°C) Storage temperature: -4°F to 140°F (-20°C to 60°C)
Humidity	Operation: 20-85%, non-condensing. Storage: 10-90%, non-condensing.
Agency Approvals	CE (EMC)、FCC Class A、CB、cUL、CCC、KC
Dimension	Length: 18.30” (465 mm) Height: 12.13” (308.20 mm) Width: 10.65” (270.71 mm)
Weight	30 lbs (13.6 Kg), excluding consumables
Options	Cutter Parallel port adaptor module (Centronic female 36-pin) Bluetooth Wireless LAN (802.11 b/g/n) Applicator Interface (DSUB female 15-pin) External label roll holder for 10” (250 mm) O.D. label rolls External label rewinder Label Dispenser + Internal Rewinder (factory install) RFID R/W module (project option
Note	* Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners. ** Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height and maximum print speed capability

GoDEX ZX1600i Specifications

Print Method	Thermal Transfer / Direct Thermal
Resolution	600 dpi (24 dots/mm)
Print Speed	Up to 4 IPS (101.6 mm/s)
Print Width	4.09” (104 mm)
Print Length	Min. 0.16” (4 mm)** – Max. 180” (4572 mm)
Processor	32 Bit RISC CPU
Memory	Flash 128 MB Flash (60 MB for user storage) SDRAM 32 MB
Sensor Type	Adjustable reflective sensor and transmissive sensor, left aligned
Media	Type:Continuous form, gap labels, black mark sensing, and punched hole; label length set by auto sensing or programming Width : Tear : Min. 1” (25.4 mm) – Max. 4.64” (118 mm) Cutter : Max. 4.61” (117 mm) Dispenser / Rewind : Max. 4.64” (118 mm) Thickness:Min. 0.003” (0.06 mm) – Max. 0.01” (0.25 mm) Label roll diameter:Max. 8” (203.2 mm) Core diameter:Min. 1.5" (38.1 mm) – Max. 3" (76.2 mm)
Ribbon	Types:Wax, wax/resin, resin Length:Max. 1476’ (450 m) Width :Min. 1.18” (30 mm) – Max. 4.33” (110 mm) Ribbon roll diameter:3” (76.2 mm) Core diameter:1” (25.4 mm)
Printer Language	EZPL, GEPL, GZPL auto switch
Software	Label design software: GoLabel (for EZPL only) Driver:MAC , Linux Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 DLL: Win CE , .NET , Windows Mobile, Windows 2000 / XP / VISTA / Windows 7 / Windows 8.1 / Android / Windows 10
Resident Fonts	Bitmap Fonts: 6, 8, 10, 12, 14, 18, 24, 30, 16X26 and OCR A&B Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°,270° rotatable Bitmap fonts 8 times expandable in horizontal and vertical directions TTF fonts：TTF fonts (Bold / Italic / Underline). 0°, 90°, 180°, 270° rotatable
Download Fonts	Bitmap Fonts: Bitmap fonts 90°, 180°, 270° rotatable, single characters 90°, 180°, 270° rotatable Asian Fonts :16x16, 24x24. Traditional Chinese (BIG-5), Simplified Chinese(GB2312), Japanese (S-JIS), Korean (KS-X1001)90∘,180∘,270∘, rotatable and 8 times expandable in horizontal and vertical directions TTF fonts :90°, 180°, 270° rotatable
Barcodes	1-D Bar codes: Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock 2-D Bar Codes: PDF417, Micro PDF417, Datamatrix code, Maxicode, QR code, Micro QR code and Aztec code
Code Pages	Codepage 437, 850, 851, 852, 855, 857, 860, 861, 862, 863, 865, 866, 869, 737 Windows 1250, 1251, 1252, 1253, 1254, 1255, 1257 Unicode UTF8、UTF16BE、UTF16LE
Graphics	Resident graphic file types are BMP and PCX, other graphic formats are downloadable from the software
Interfaces	• USB 2.0 (B-Type) • Serial port: RS-232 (DB-9) • IEEE 802.3 10/100 Base-Tx Ethernet port (RJ-45) • 3 USB Host (A-Type). 2 ports at the front panel, 1 port at the rear panel
Control Panel	• Backlight 3.2” touch screen LCD • 1 Power on/off button with green color LED backlight • 1 Control key : FEED / PAUSE / CANCEL with dual color LED backlight: Ready (Green); Error (Red) • 1 Calibration button at rear panel
Power	Switching power 100-240VAC, 50-60Hz input
Real Time Clock	Standard
Environment	Operation temperature: 41°F to 104°F (5°C to 40°C) Storage temperature: -4°F to 140°F (-20°C to 60°C)
Humidity	Operation: 20-85%, non-condensing. Storage: 10-90%, non-condensing.
Agency Approvals	CE (EMC)、FCC Class A、CB、cUL、CCC、KC
Dimension	Length: 18.30” (465 mm) Height: 12.13” (308.20 mm) Width: 10.65” (270.71 mm)
Weight	30 lbs (13.6 Kg), excluding consumables
Options	Cutter Parallel port adaptor module (Centronic female 36-pin) Bluetooth Wireless LAN (802.11 b/g/n) Applicator Interface (DSUB female 15-pin) External label roll holder for 10” (250 mm) O.D. label rolls External label rewinder Label Dispenser + Internal Rewinder (factory install) RFID R/W module (project option
Note	* Specifications are subject to change without notice. All company and/or product names are trademarks and/or registered trademarks of their respective owners. ** Minimum print height and maximum print speed specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. GoDEX is pleased to test non-standard materials for minimum print height and maximum print speed capability

Brochure_GoDEX_ZX1000i_EN

Cart

EZ Series

GoDEX EZ2250i / EZ2350i

GoDEX EZ2250i Specifications

GoDEX EZ2350i Specifications

ZX400 Series

GoDEX ZX420 / 430

GoDEX ZX420i / 430i

GoDEX ZX420/430 Specifications

GoDEX ZX420i/430i Specifications

ZX1000 Series

ZX1200i / 1300i / 1600i

GoDEX ZX1200i Specifications

GoDEX ZX1300i Specifications

GoDEX ZX1600i Specifications
